Datalogic PowerScan 9500 Series PBT9500 / PD9500 / PM9500 Rugged Industrial Handheld Scanner

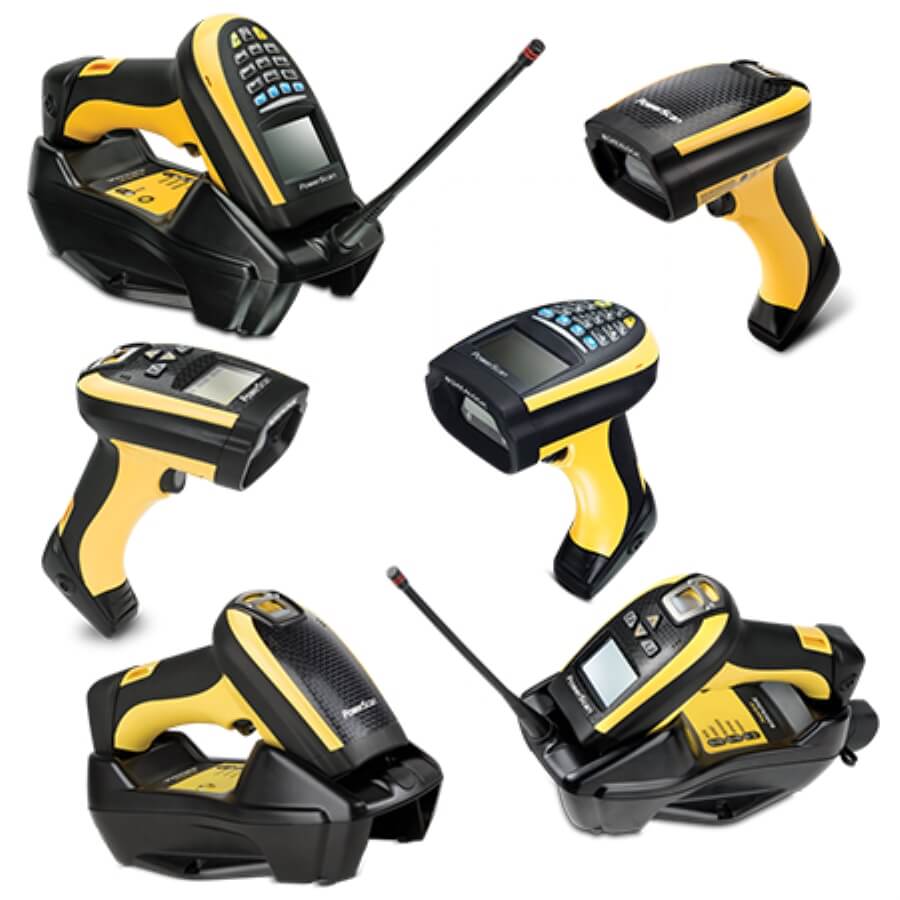

PowerScan 9500 Series 2D area imagers with omnidirectional reading thrive in rugged and indestructible environments

New technology

The PowerScan 9500 imagers introduce a new technology with the ‘Liquid Lens’ feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic’s Motionix™ motionsensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning). Additionally, the PowerScan 9500 family uses a soft-pulsed white illumination light resulting in reduced flashes, which is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.

Good-read feedback and superior reading performance

The PowerScan 9500 imagers feature Datalogic’s exclusive 3 Green Lights (3GL™) for superior good-read feedback. The patented ‘Green Spot’ directly on the code and dual good-read LEDs on the top and back of the cap add increased visibility at any angle. All models have multi-interface capabilities built in featuring the most popular interfaces: RS-232, RS-485, Keyboard Wedge and USB. The Datalogic Aladdin™ configuration program provides user-friendly features that simplify the start-up procedure, even for inexperienced users.

Cordless models are simple to use and deploy

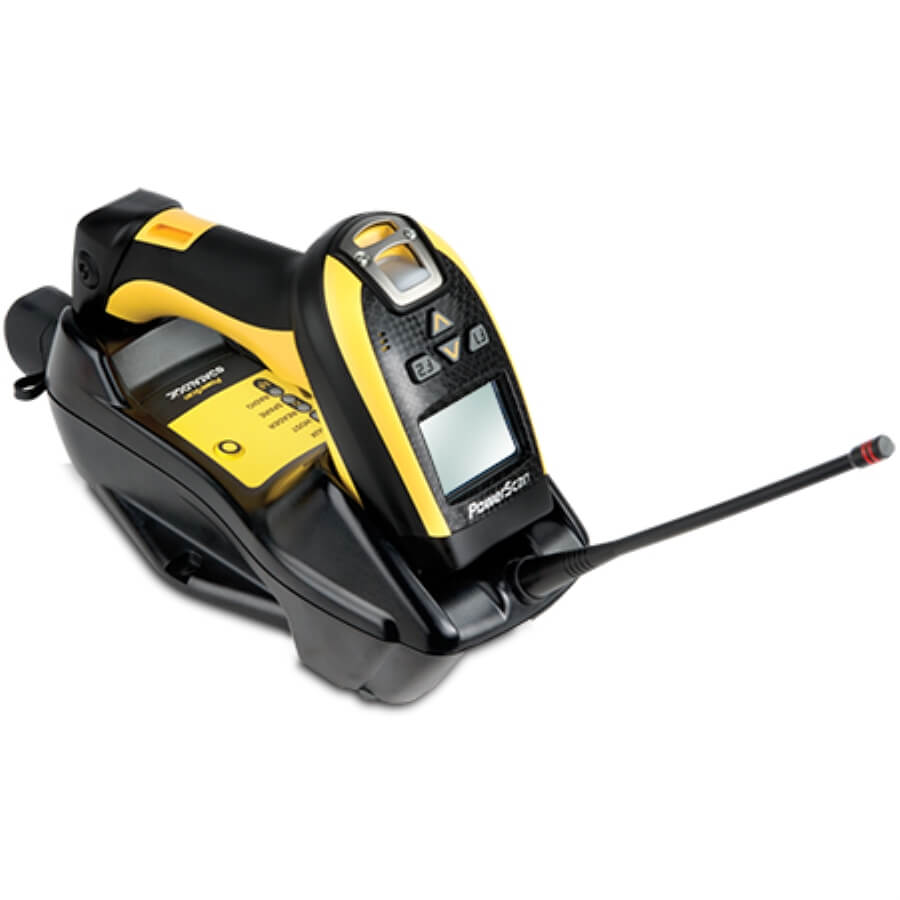

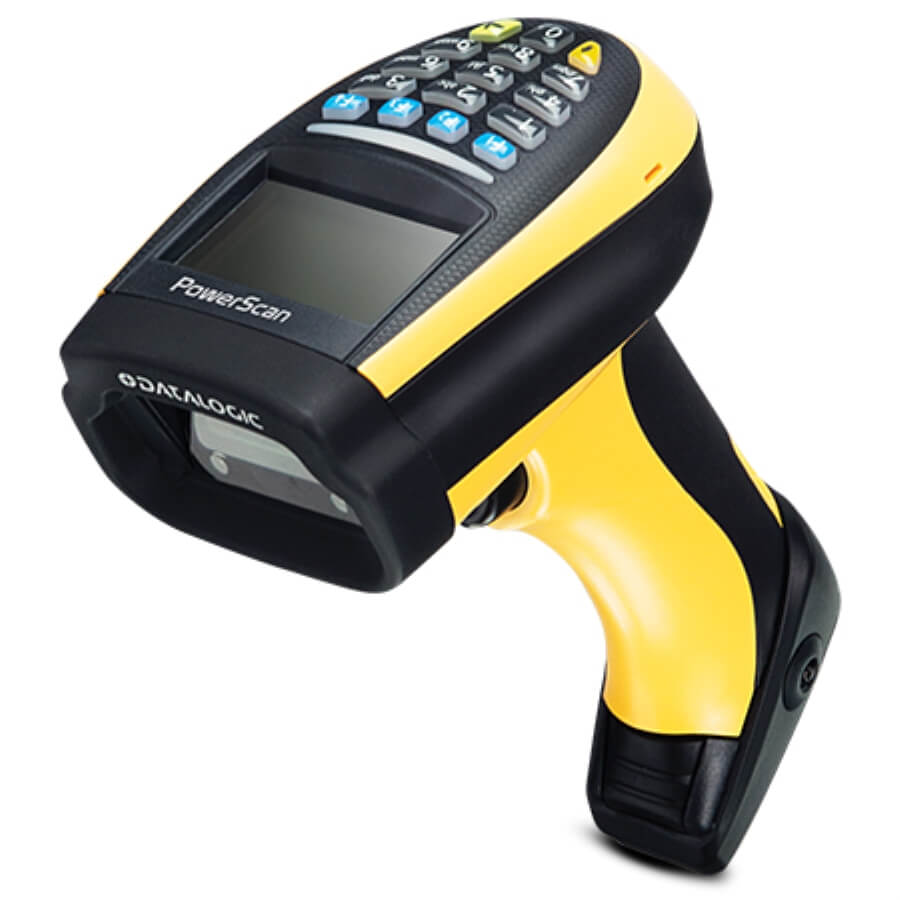

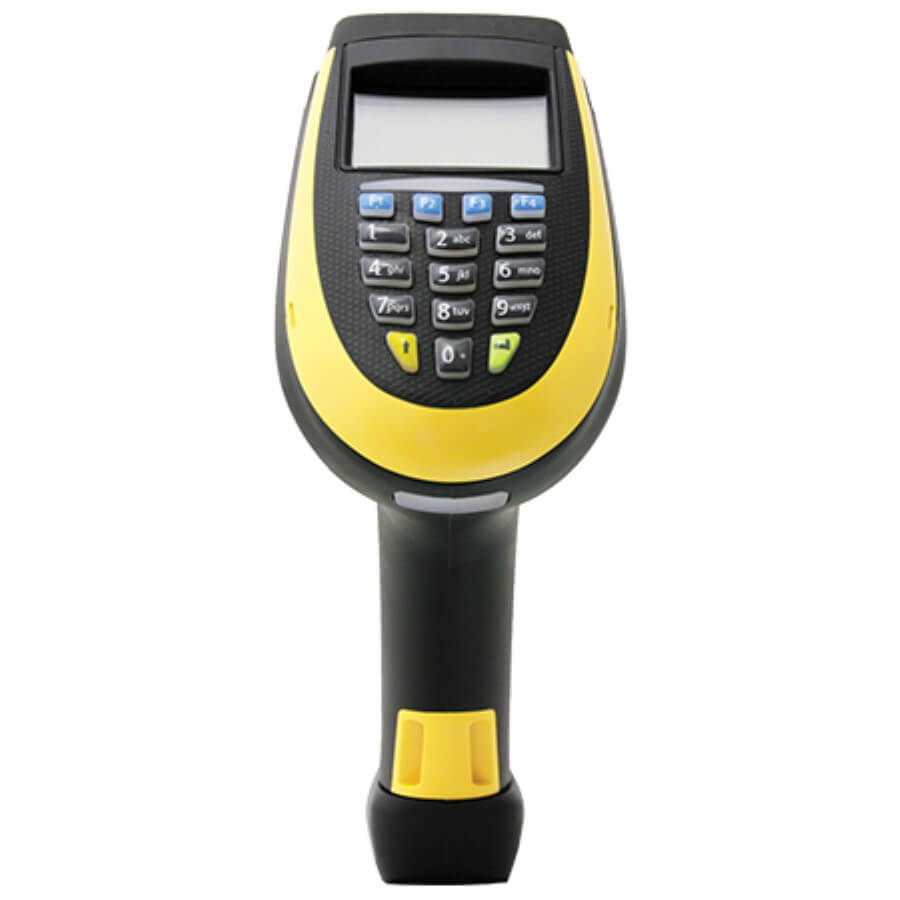

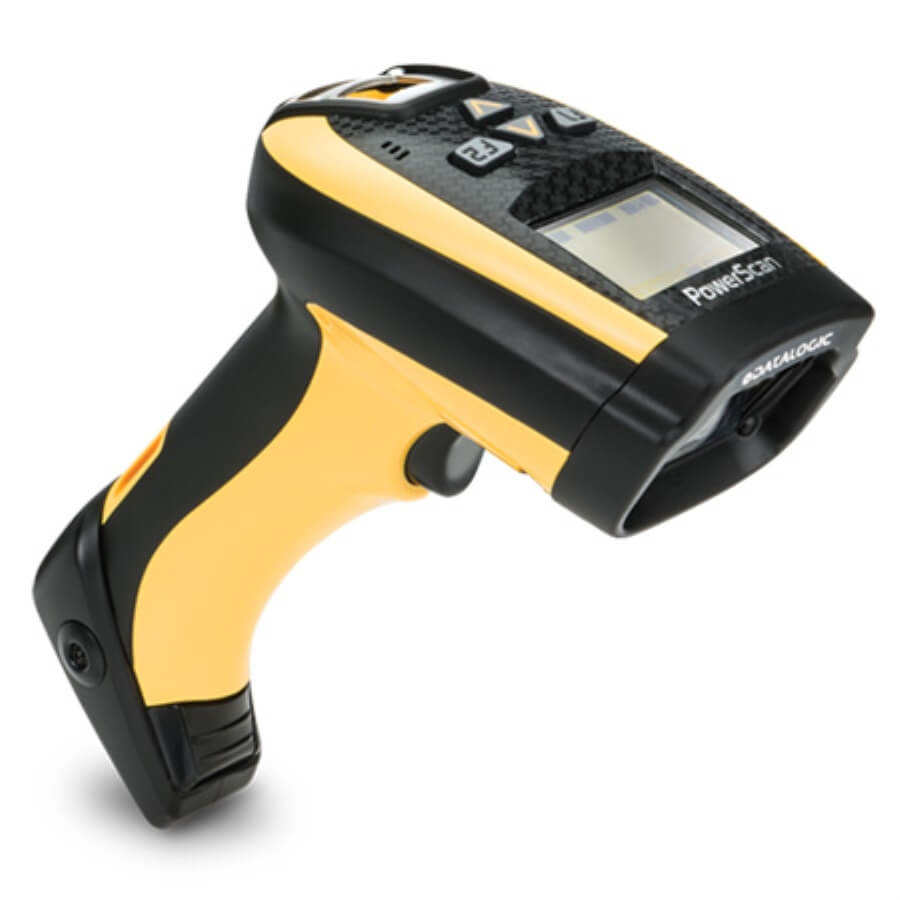

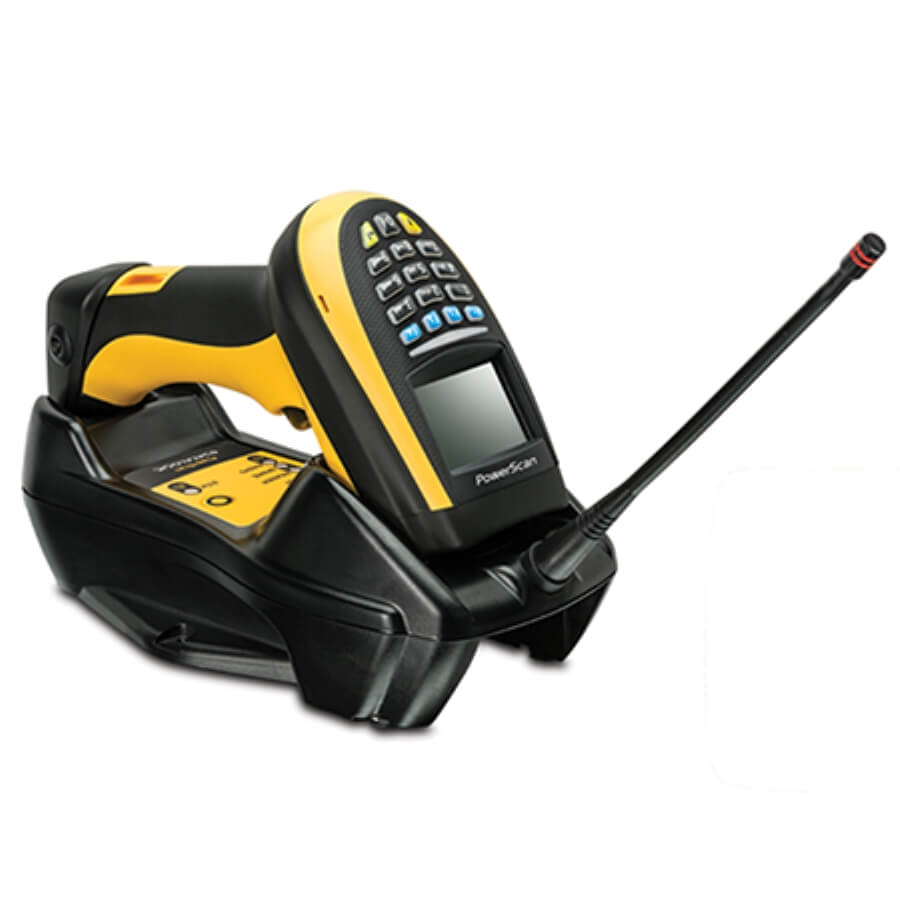

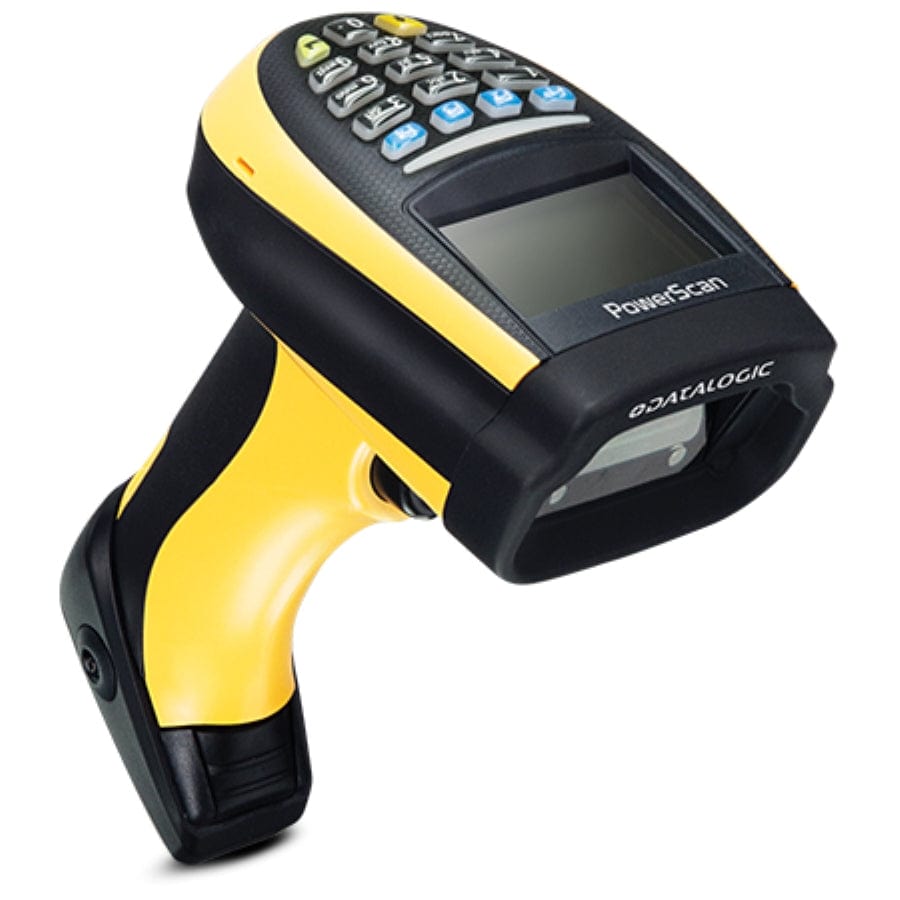

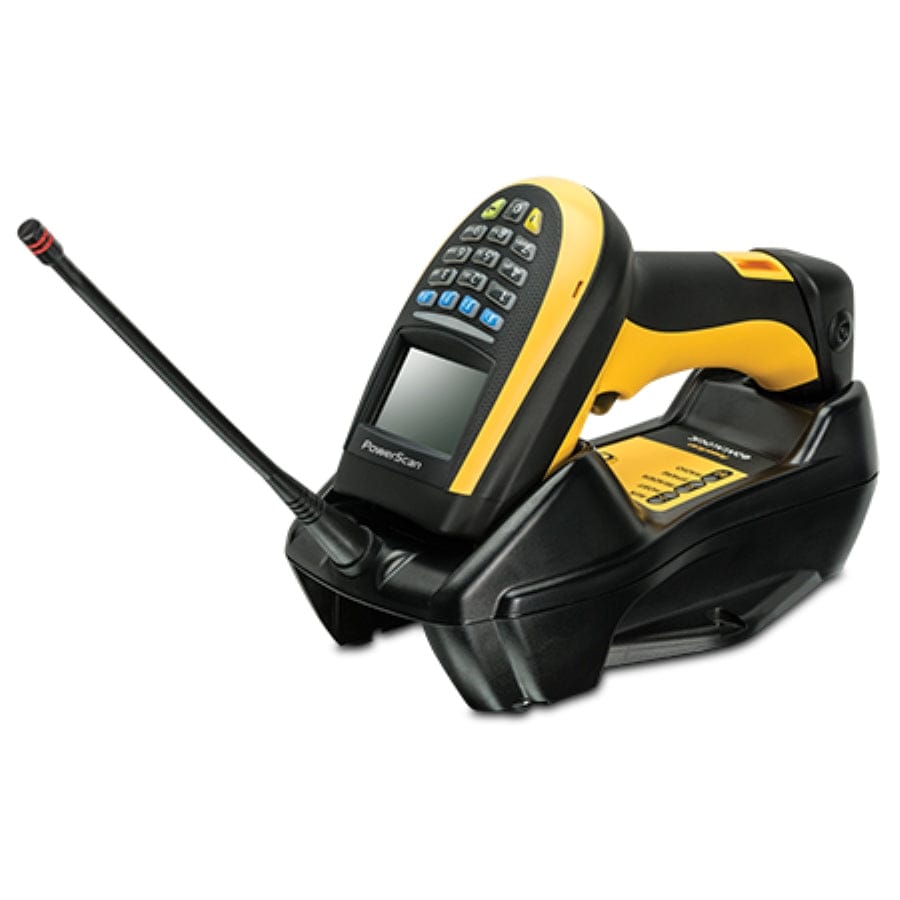

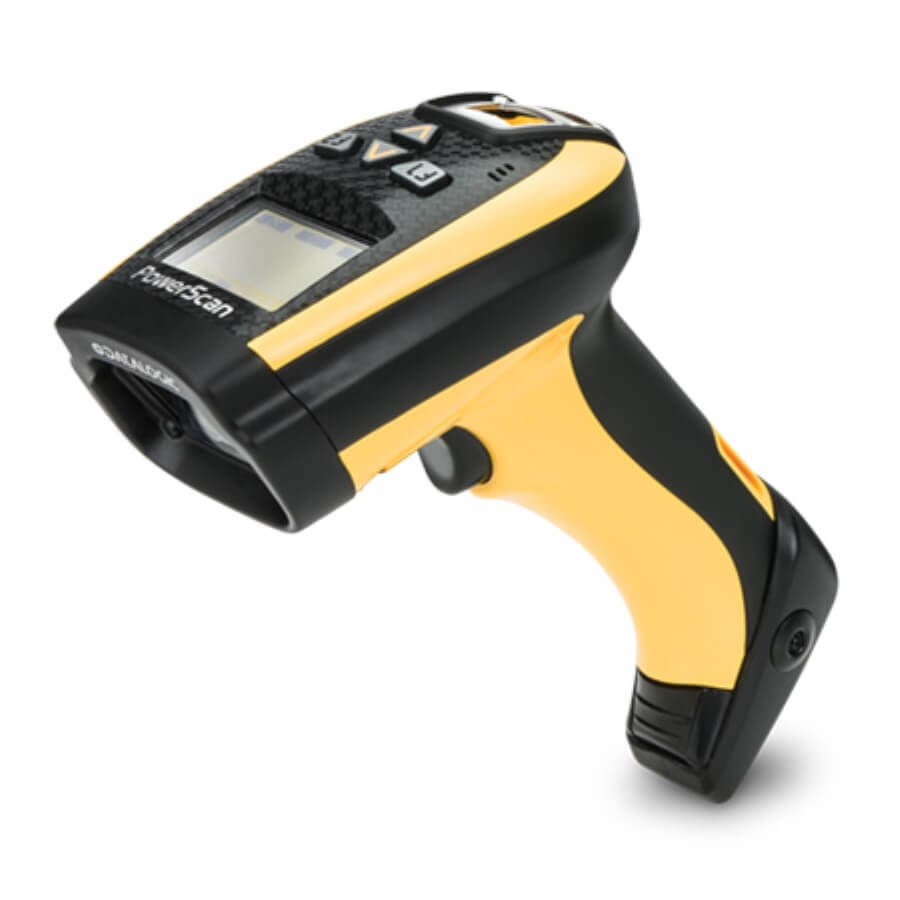

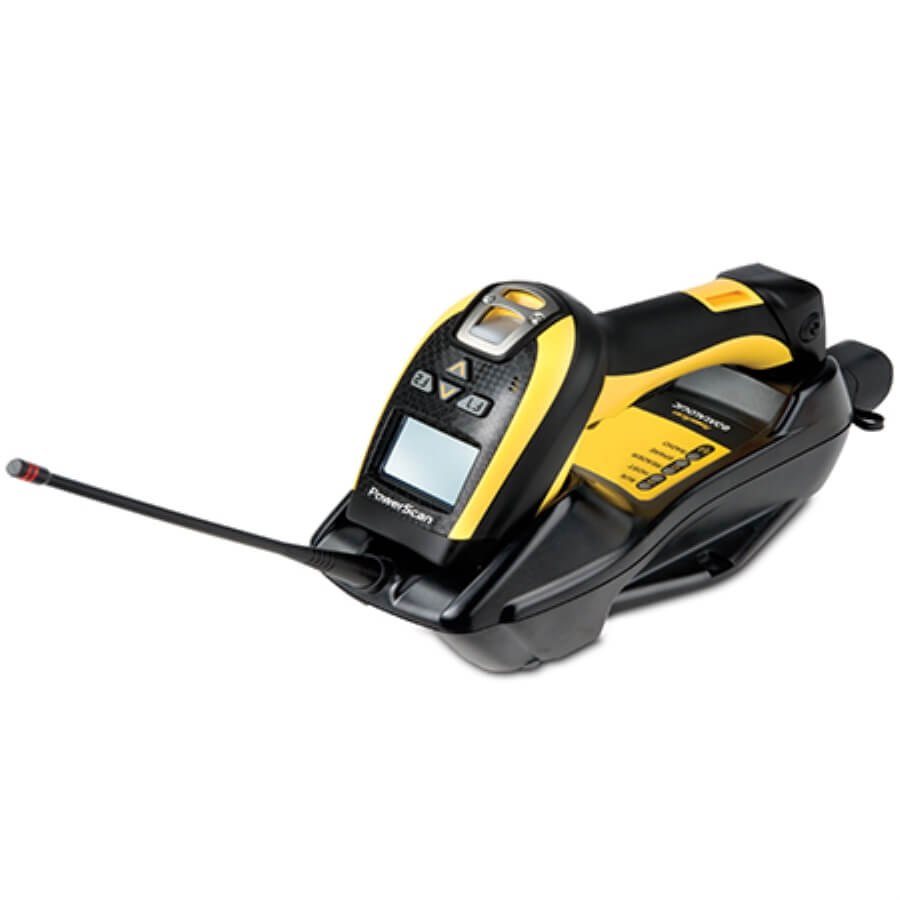

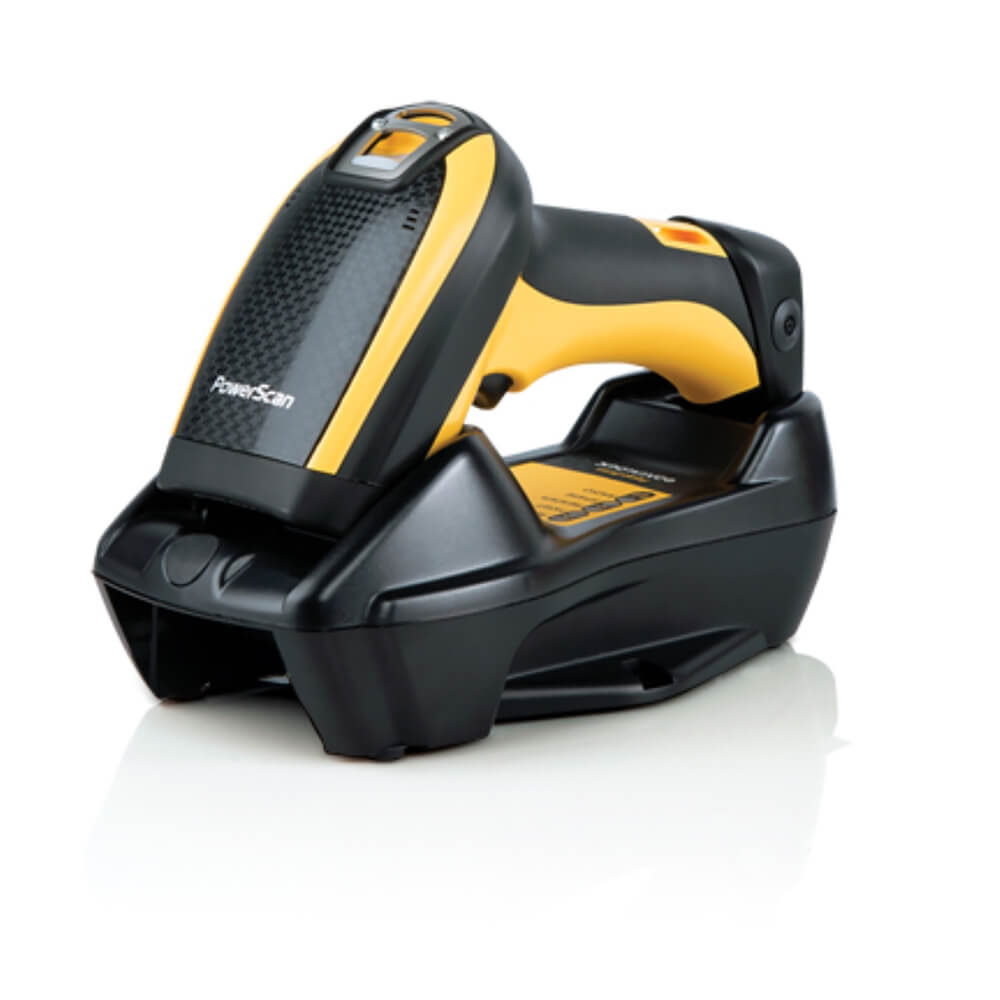

The PowerScan PBT9500 cordless model is based on Bluetooth 3.0 standard wireless technology, Class 1 Range (in open air); up to 100 m / 328 ft and is available in a Standard Range (SR) model. The PowerScan PM9500 cordless model uses narrow band radio communications with Datalogic’s STAR Cordless System™ 2.0 and provides increased productivity and flexibility in the workplace. The PM9501 model also offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.

Features

• High-performance Liquid Lens allows one model to read standard, wide and high density codes

• Snappy omnidirectional reading

• Intuitive aiming system

• Soft white light illumination

• Bluetooth 3.0 compliant: Class 1; Piconet with up to 7 scanners connected to the same base station

• Multiple interfaces available

• Ethernet Connectivity (Standard and Industrial)

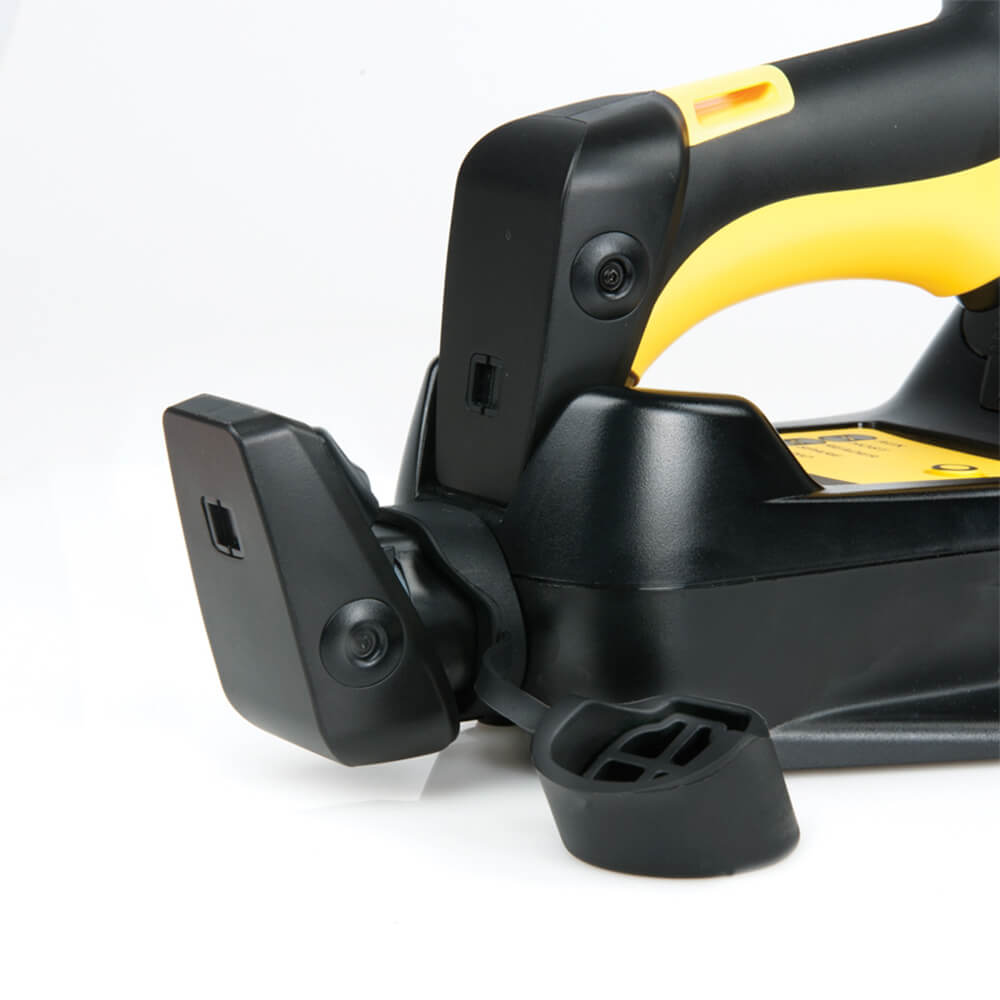

• Lithium-Ion battery replaces in 3 seconds!

• Datalogic’s Motionix™ motion-sensing technology

• Ergonomic shape provides hours of tireless data collection for the user

• Image capture

• Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback

• Water and Particulate Sealing Rating: IP65

• In-field replaceable window and cradle contacts

• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Industry - Application

• Entertainment

• Access Control

• Mobile Coupons

• Ticket Validation

• Security / Age Verification

• Lottery

• Manufacturing Shop Floor:

• Work-in-Progress

• Sub-Assembly

• Component Tracking

• Quality Control

• Time and Cost Analysis

• Machine Replenishment / Configuration

• Line Inventory Control

• Warehouse and Logistic Centers

• Shipping / Receiving

• Parcel Preparation

• Picking / Put Away

• Automatic Sorting Back-Up

• End of Line Sorting
