REA VeriCube
Matrix Code Verification Systems
The REA VeriCube is a state-of-the-art matrix and barcode verification device which can be used across all industry sectors. Whether lying, standing or from top to bottom, virtually any test sample can be measured contact-free in the optimum measuring position.
The measurement of optical codes in compliance with defined angles, distances and lighting allows accurate and reproducible measurement results and quality evaluations.
The measuring system is based on a high-precision optical module with a CMOS camera chip. The system is designed to avoid ambient light influences during the measurement process.
With the REA VeriCube you can quickly find out how to improve the read rate of the tested codes. Optimize the print quality of your codes by utilizing detailed measurement results.
Product Details
-
Universal, stationary 2D code verification device
-
High-quality aluminum housing, powder-coated, lacquerd with glass cover
-
Easy exchangeable and scratch-resistant glass cover
-
Different ligthing options (UV, Red, White and IR)
-
Compact dimensions (200 x 150 x 150 mm)
-
REA VeriCube Standard: Top plates with threaded holes to mount fixtures
-
REA VeriCube Pharma: Top plates without threaded holes
-
REA VeriCube Inline: PLC variant for integration in machines and plants
-
REA VeriCube DPM: Direct Part Marking variant with DOME illumination for code verification on very glossy surfaces
-
REA VeriCube DF: Variant with diffus illumination for glossy surfaces and complex 3D geometries
-
REA VeriCube ILS: machine integrated variant for inline sample taking
Options
Camera module for matrix codes
-
Focal lenght 8 mm ⇒ field of view 114 x 76 mm
-
Focal lenght 12 mm ⇒ field of view 80 x 60 mm
-
Focal lenght 16 mm ⇒ field of view 64 x 47 mm
-
Focal lenght 25 mm ⇒ field of view 37 x 27 mm
-
Focal lenght 35 mm ⇒ field of view 28 x 21 mm
-
Focal lenght 50 mm ⇒ field of view 9 x 6 mm
Additional camera modules available for measuring distance +15mm and +45mm.
Features
-
Contact-free measurements by a CMOS camera
-
Easy exchangeable camera modules to adapt to different code sizes
-
Selectable illumination (red or white light)
-
Capable of measuring DPM codes (direct part marking)
-
Designed to operate in 3 positions to meet different measuring requirements: sidewise, in upright position and upside down
-
Darkened measuring chamber to avoid ambient light influences
-
Verification according to ISO/IEC 15415 for printed matrix codes
-
Verification according to ISO/IEC TR 29158 (formerly AIM DPM guideline 2006) for direct part marking matrix codes
-
Verification according to ISO/IEC 15416 or ANSI X3.182 for barcodes
-
Verification in compliance with GS1 specifications
-
Verification of GS1-128 data structures
-
Verification of optional parameters for optimizing the print process
-
Multilingual user interface and reports
-
For ease of use, settings can be stored in custo-mized profiles for fast selection
-
ISO/IEC 15418 / ANS MH10.8.2 data structure analysis
-
Specific code selection to meet the pharmaceutical industry demands
-
Power supply via network cable (Power over Ethernet)Easy removable and exchangeable transparent cover plate
-
Network-compatible PC evaluation software TransWin 32 for Windows (multi user capable)
-
Option Audit Trail for 21 CFR part 11 and CGMP requirements optionally available
Technical Data
-
Measuring accuracy compliant to ISO/IEC 15426-2 and ISO/IEC 15426-1
-
Windows Software TransWin32 included
-
Red LED light 660nm or white LED light 4.000 °K
-
Illumination angle 45°, red or white light
-
Status LEDs for scan and light source selection
-
Power supply via PoE (Power over Ethernet)Key panel with on/off, Scan and 3 customizable function keys
-
Flip key panel to accomodate to preferred measuring position
-
RJ45 Ethernet port for TCP/IP communication and PoE Power supply
-
Exchangeable camera module, resolution 2592 x 1944 pixel
-
Camera focus and aperture pre-adjusted by factorySize: 200 x 150 x 150 mm (w/l/h), with key panel 210 mm width
-
Weight: 2.600 g
-
Windows 10, Windows 8, Windows 7, 64 bit supported
-
ISO/IEC 15423 : Please note that this performance standard is valid for barcode and matrix codes scanners only. It does not apply to optical measuring instruments like the REA Verifier product range. For Verifiers ISO/IEC 15426-x are the appicable performance standards.
-
ISO/IEC 15419: Please note that this performance standard is valid for barcode and matrix codes labeling and code generation software as well as for printers printing QR-Codes, Data Matrix Codes and Barcodes.
Symbologies
2D Matrix Codes:
-
ISO/IEC 16022 Data Matrix
-
ISO/IEC 18004 QR-Code
-
ISO/IEC 24778 Aztec Code
-
ISO/IEC 20830 Han Xin Code
-
AIM ISS DotCode
-
ISO/IEC 15438 PDF417
-
ISO/IEC 24728 MicroPDF417
1D Barcodes:
-
ISO/IEC 24723 Composite Code
-
ISO/IEC 15420 EAN/UPC (EAN-13, EAN-A, UPC-A, UPC-E und Add-On)
-
ISO/IEC 15417 Code 128
-
ISO/IEC 16388 Code 39 (mit PZN und Code 32)
-
ISO/IEC 16390 Interleaved 2 of 5 einschließlich ITF-14
-
ISO/IEC 24724 GS1 DataBar
Optional Codes:
-
2/5 3 Bars, 2/5 5 Bars, 2/5 IATA, 2/5 Baggage, 2/5 DHL Express (Frachtpost-Code), Code39 Full ASCII, Code93, MSI, Plessey, Codabar Monarch (18), LAETUS Pharmacode, LAETUS Mini Pharma Code, Russian Crypto Code, China Drug Supervision Code, Japan CVS payment Code, UPU-S10 Postal Codes, DPD Parcel Service
Data structures and code properties:
-
GS1 data structures: GS1 DataMatrix, GS1 QR-Code, GS1-128, GS1 Databar, GS1 Composite Code), Crypto Code (GS1 General Specifications)
-
ISO data structures: ISO/IEC 15418 / ANSI MH10.8.2, ISO/IEC 15459 (part 1 to 8), ISO/IEC 15434 used by Issuing agencies and associations: AIAG, Odette, VDA, EDIFICE, HIBC, DOD, UPU, JEISA, JEITA, IFA …)
-
ISO 28219, ISO 22742, ISO 15394
-
EFPIA and PPN support for pharmaceutical industry (delegated Act EU 2016/161 and UDI/MDR 2017/745, 2017/746, US DSCSA, Turkey and more, US GUDID alignment (UDI)
-
DOD MilStd 130 IUID support, AIT (German Armed Forces)
-
Check digit control settings
-
Size control settings
-
Customizable date verification
-
Optional database (item number verification)
-
IKEA Data Matrix Code and IKEA interleaved 2 of 5 Code
Evaluation:
-
ISO/IEC 15416 for barcodes, ISO/IEC 15415 for 2D Codes
-
ISO/IEC 29158 and SAE AS 9132 for DPM
-
GB/T 14258 (China barcode), ANSI X3.182
Share

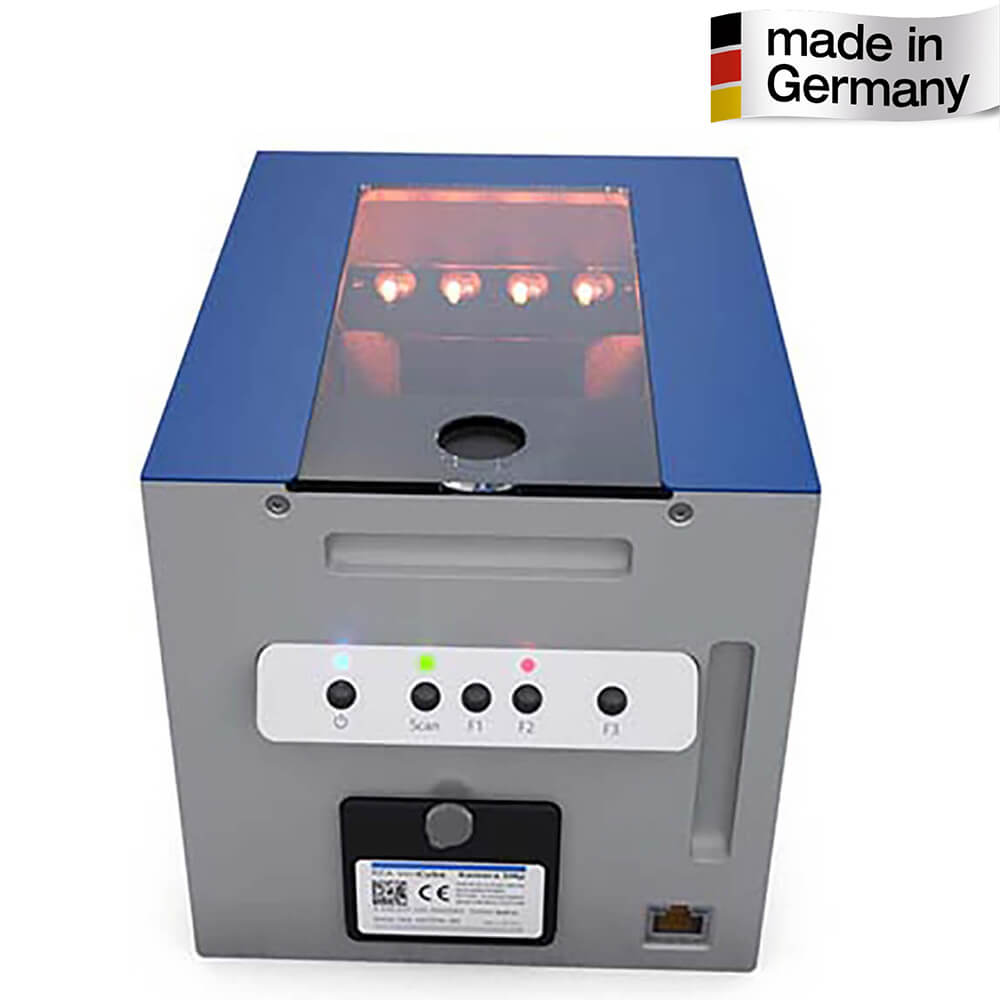

![REA VeriCube front view](http://www.barcodeworld.net/cdn/shop/files/REAVeriCubefrontview.jpg?v=1707659628&width=1445)

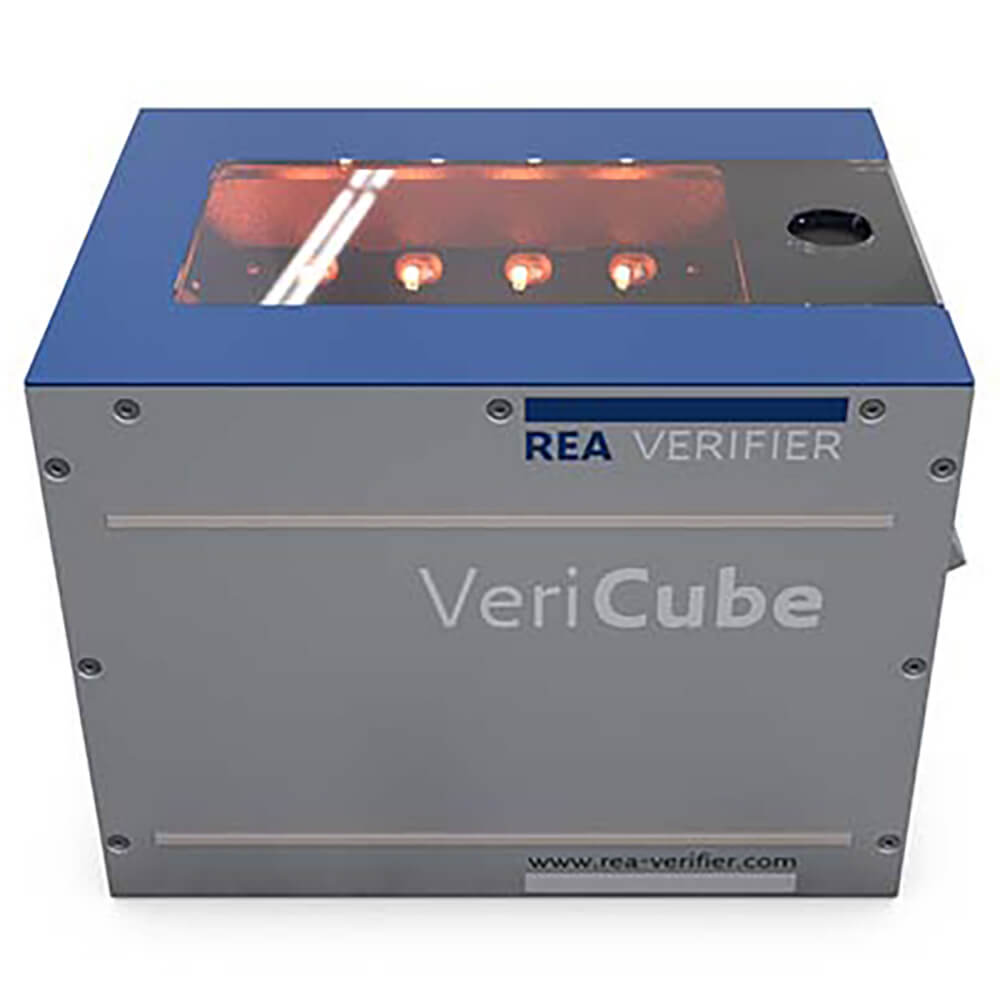

![REA VeriCube side view 1](http://www.barcodeworld.net/cdn/shop/files/REAVeriCubesideview1.jpg?v=1707659628&width=1445)

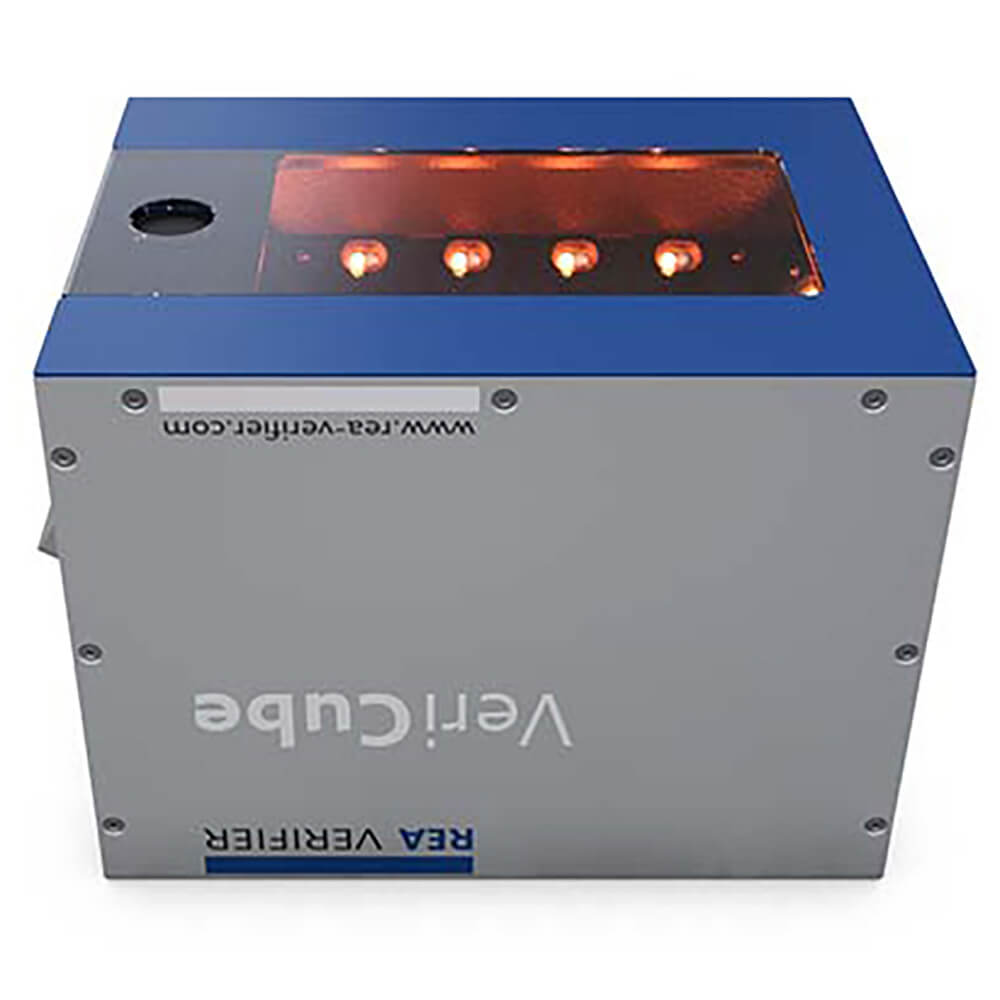

![REA VeriCube side view 2](http://www.barcodeworld.net/cdn/shop/files/REAVeriCubesideview2.jpg?v=1707659628&width=1445)

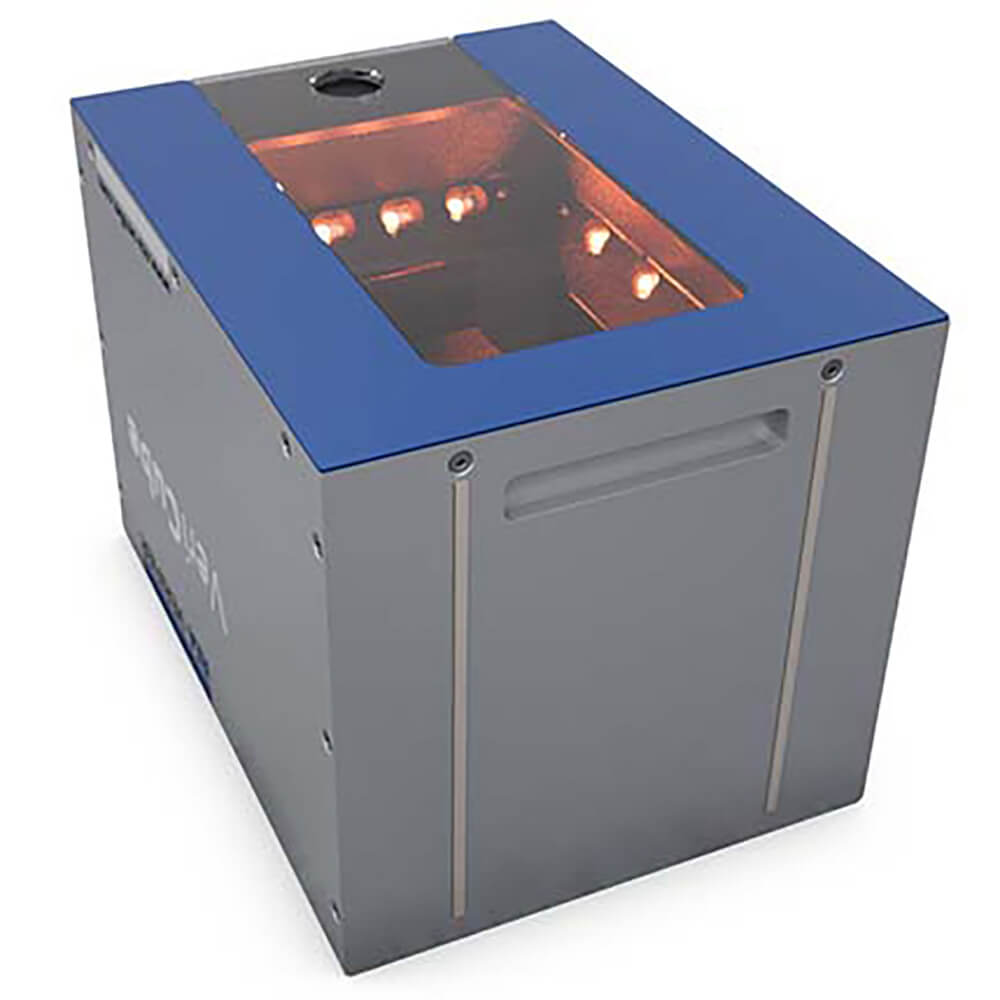

![REA VeriCube back view](http://www.barcodeworld.net/cdn/shop/files/REAVeriCubebackview.jpg?v=1707659628&width=1445)

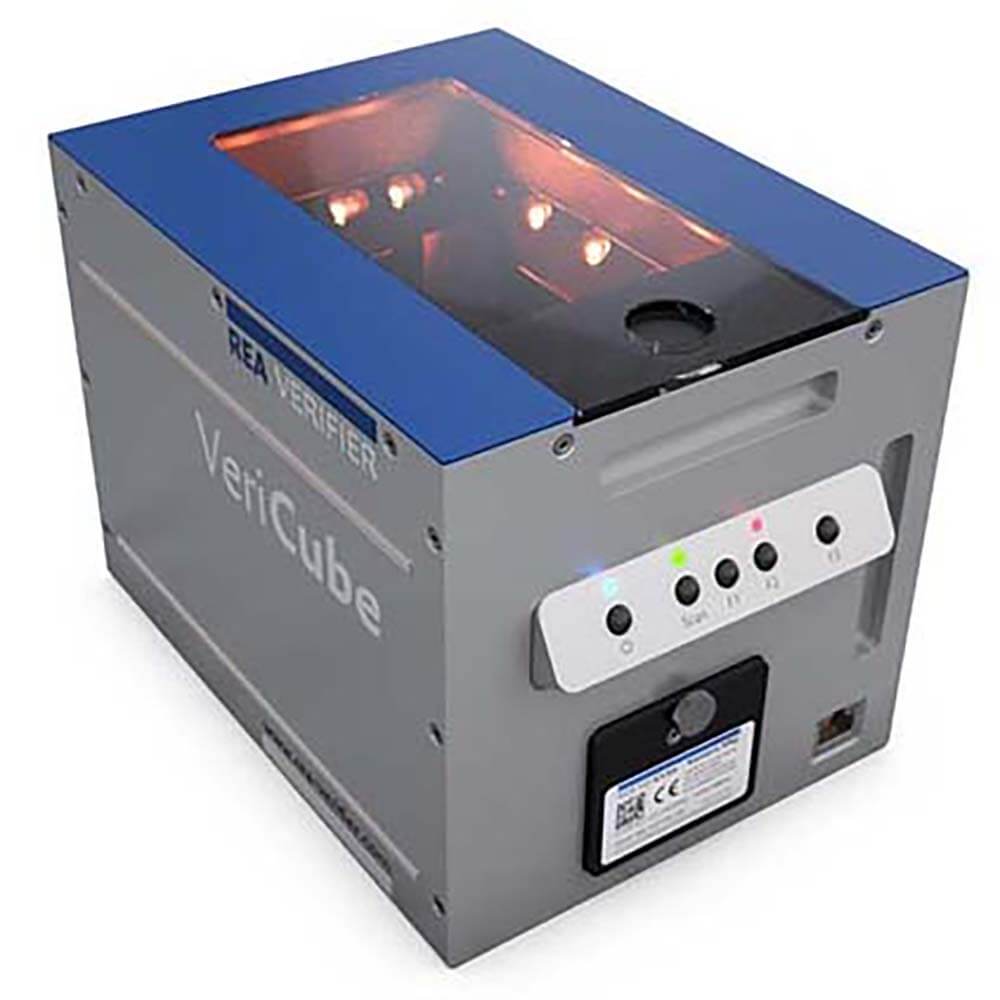

![REA VeriCube front left side](http://www.barcodeworld.net/cdn/shop/files/REAVeriCubefrontleftside.jpg?v=1707659628&width=1445)

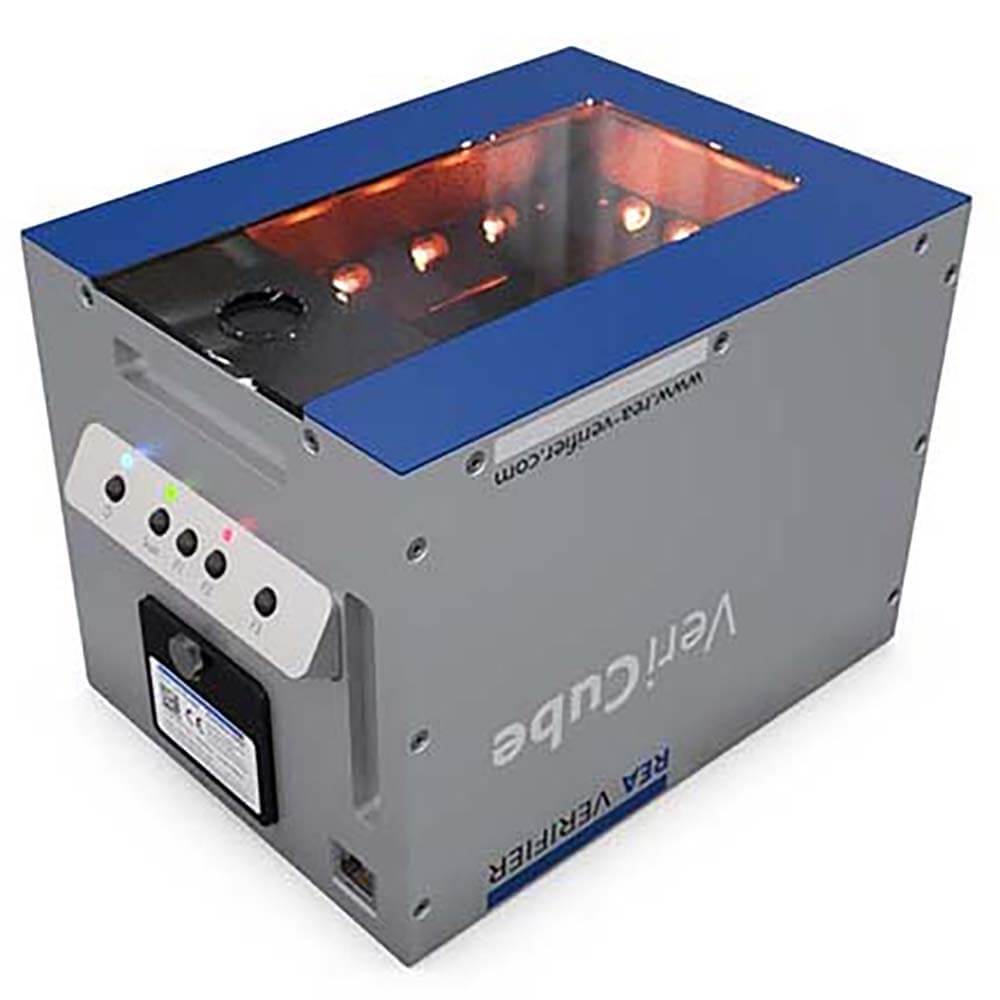

![REA VeriCube front right side](http://www.barcodeworld.net/cdn/shop/files/REAVeriCubefrontrightside.jpg?v=1707659628&width=1445)
